Rotating Host IP Address for Pentesters/Red Team

There are many use cases why you need to rotate your IP address, some use cases on top of mind:

• IP-based rate limiting bypass

  • After making 3 wrong authentication attempts, application was blocking me for 24 hours

• Testing/Bypassing IPS/WAF rules

• Hide/generate traffic during the attack simulation campaign

In this blog, we will focus on ProxyCannon-NG: https://github.com/proxycannon/proxycannon-ng

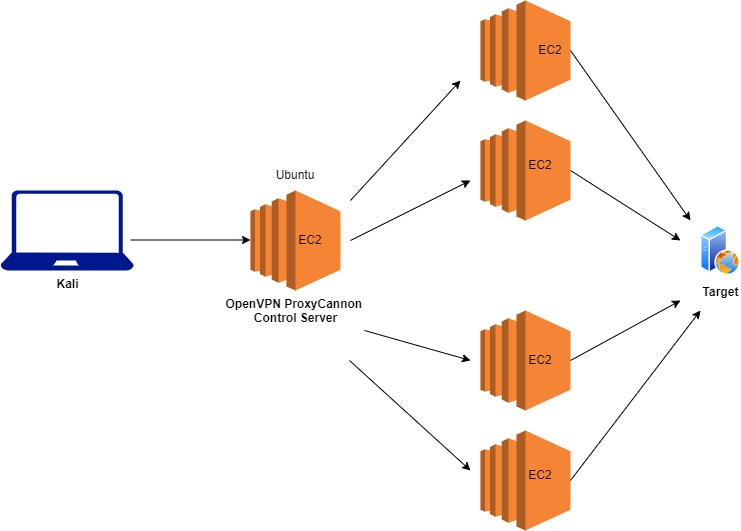

ProxyCannon-NG is proxy tool that leverages cloud environments giving a user the ability to source (all) your traffic from an endless supply of cloud based IP address. Think of it as your own private TOR network for your redteam and pentest engagements. No more defenses throttling and blocking you!

1. Spin up EC2 Ubuntu 18.04 Instance

Instance type: t2.micro (By default selected)

Name your key pair: proxycannon

Security Group: Allow All Traffic from Anywhere

2. Create a new IAM user with "Programmatic Access" so proxycannon control server can create EC2 nodes:

Assign "AmazonEC2FullAccess" permission to this IAM user

We will use "Access key ID" and "Secret access key" later.

3. Configure SSH on Kali

mkdir ~/.ssh
mv proxycannon.pem ~/.ssh/
chmod 600 ~/.ssh/proxycannon.pem

gedit ~/.ssh/config

Host proxy-controlserver
HostName 100.26.188.186
User ubuntu
PubKeyAuthentication yes
IdentityFile ~/.ssh/proxycannon.pem
StrictHostKeyChecking off

4. Installing proxycannon-ng

ssh proxy-controlserver

sudo -i
cd /opt/
git clone https://github.com/proxycannon/proxycannon-ng

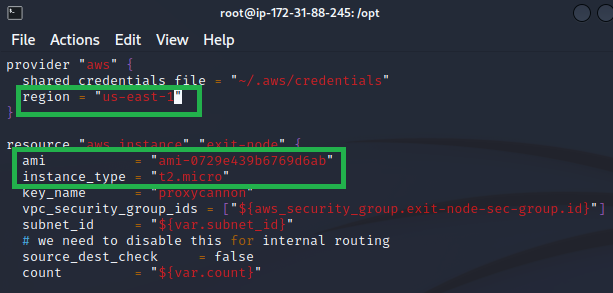

vi proxycannon-ng/nodes/aws/main.tf
# replace EC2 "region" with proxycontrol ubuntu EC2 region
# replace EC2 "ami" with proxycontrol ubuntu EC2 AMI id
# replace "instance_type" also based on your ec2 instance

# setup aws credentials

vi /root/.aws/credentials

[default]
aws_access_key_id = AKIAS7U4XXXXXXXXXXXXX
aws_secret_access_key = Ux25n4YFi4XXXXXXXXXXXXXXXXXXXXXXX
region = us-east-1

# copy proxycannon.pem SSH key from kali to proxycannon control server

scp ~/.ssh/proxycannon.pem proxy-controlserver:/home/ubuntu/.ssh/proxycannon.pem

# In our SSH session on the Proxycannon Control Server, copy the SSH key to the root user's ".ssh" directory and confirm that the file has the proper permissions:

cp -v /home/ubuntu/.ssh/proxycannon.pem /root/.ssh/
chown -R root:root /root/.ssh
chmod 600 /root/.ssh/proxycannon.pem

# Edit "variables.tf", Replace "subnet_id" with proxycannon control server EC2 subnet ID, and Change "count" to the number of EC2 nodes you want to spin up

vi /opt/proxycannon-ng/nodes/aws/variables.tf

# Installing AWS teraform provider

cd /opt/proxycannon-ng/nodes/aws/

terraform init

terraform apply

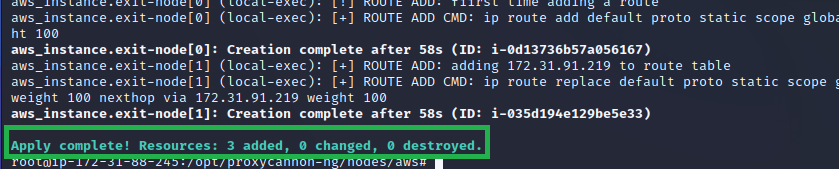

Here we can see, we spin up 2 EC2 instances. We can go for more also, more instances more ips ;)

5. Copy OpenVPN client files to kali and connect using openvpn

On Proxycannon control server:

mkdir /home/ubuntu/client-files
cd /etc/openvpn/easy-rsa/keys/
cp -v ta.key ca.crt client01.[ck][er]* /home/ubuntu/client-files/
cp -v /root/proxycannon-client.conf /home/ubuntu/client-files/
chown -R ubuntu /home/ubuntu/client-files

On kali:

scp -r proxy-controlserver:~/client-files ~/
cd ~/client-files

sudo openvpn --config proxycannon-client.conf

6. Destroying all exit nodes

sudo su
cd /opt/proxycannon-ng/nodes/aws/
terraform destroy

If you are blue teamer, as you can see if you deny the adversary the use of one of their IPs, they can usually recover without even breaking stride. Its better to focus on understanding attackers Tactics, Techniques, and Procedures (TTP) and prevent him/her at this level.
